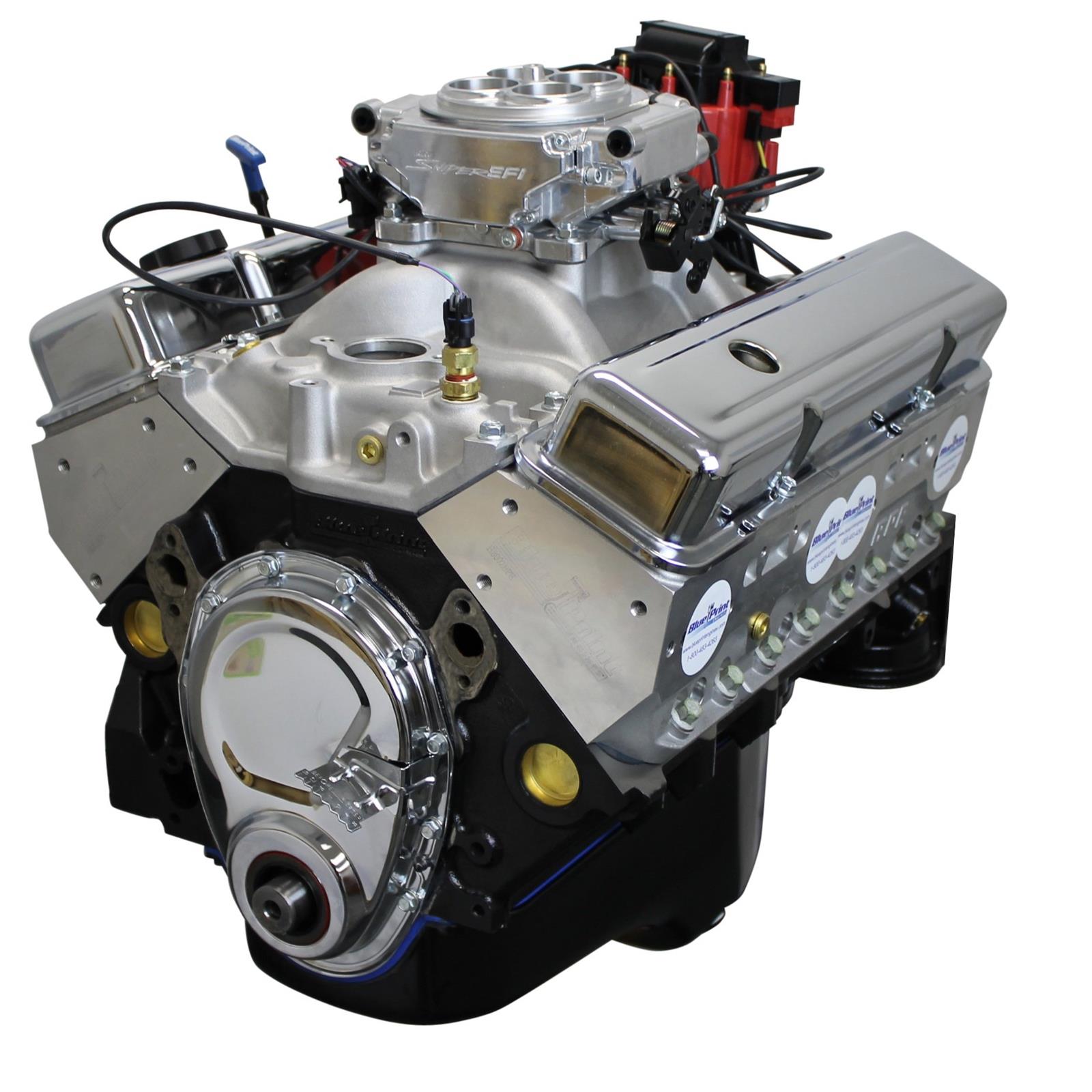

BluePrint BP38318CTF1 383CI Stroker Crate Engine, Fully Dressed

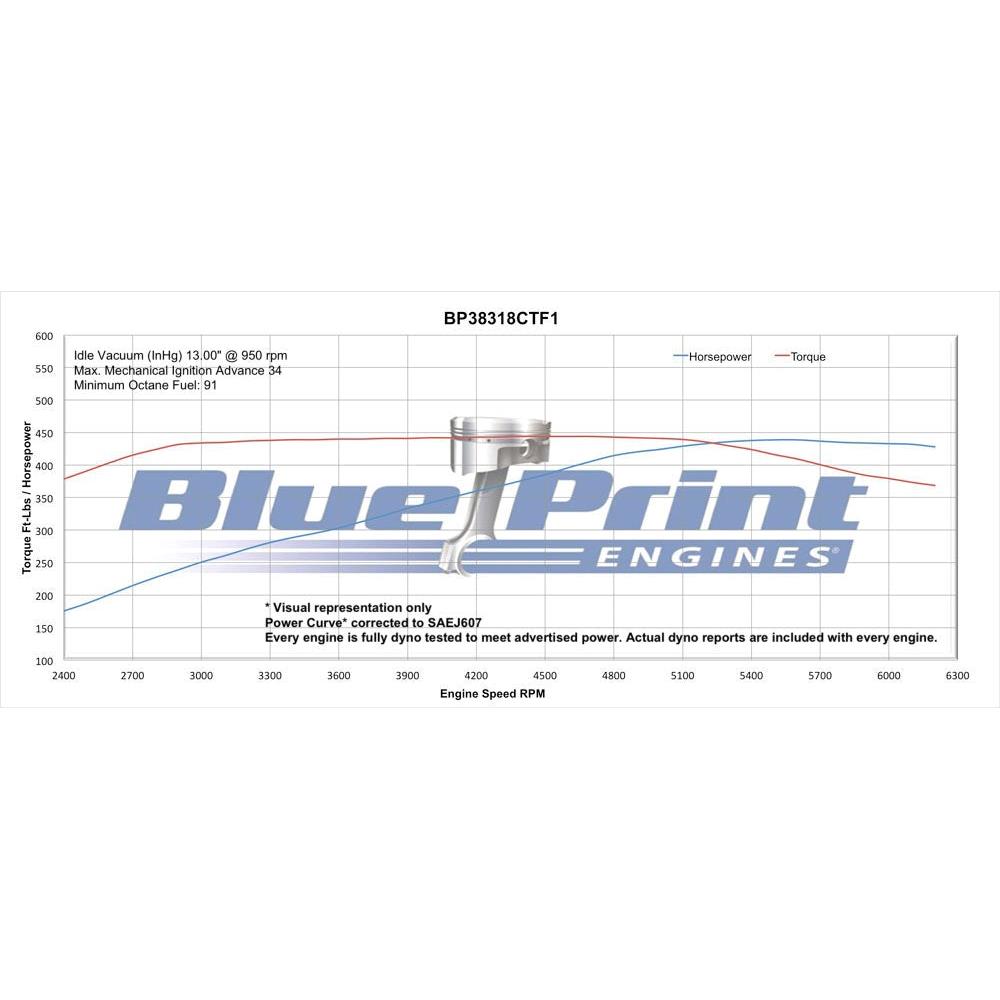

New Block Casting BluePrint Engines 383CI Stroker Crate Engine | Dressed Longblock with Fuel Injection | Aluminum Heads | Roller Cam HP & Torque: 436 HP / 443 FT LBS Compression Ratio: 10.0:1 Aluminum Heads Hydraulic Roller Cam Cast Steel Crank Hypereutectic Pistons BLOCK: NEW BluePrint Cast Iron Block Manufactured and Machined in the USA! 4-Bolt Main 4.000" 1-Piece Rear Main Seal Mech fuel pump provision: Yes Passenger Side Dipstick Drilled and tapped for clutch linkage ROTATING ASSEMBLY: New BluePrint Cast steel crankshaft 3.750" Stroke OEM type 5.700" connecting rods w/ 150,000 psi bolts Hypereutectic pistons External Front/ External Rear balance CYLINDER HEADS: BluePrint Aluminum Cylinder Heads – H8002K 64cc chamber 2.02" intake/1.60" exhaust valves 195cc intake/75cc exhaust runners CAM SPECS: Cam Type: Roller .544 Intake .555 Exhaust 230 Intake / 236 Exhaust duration @ .050, 110 ° lobe separation angle IGNITION TIMING: Initial timing – 10-16° and Total timing 32-34° ALSO INCLUDES: Intake Manifold Oil Pan Valve Covers Timing Cover WARRANTY: 30 month / 50,000 mile NOTES: Not for EGR. Recommended Oil: BPP710 BluePrint Crate Engine Break In Oil Recommended Harmonic Balancer: BPP400 Recommended Stall Converter: 2000 to 2400 RPM. Recommended Fuel: 91 Octane. Engine package does not include fuel pump. Engine is configured to run in fuel only mode. The Aftermarket intake manifold installed on this engine may not be compatible with OEM accessory brackets that use intake mounted bosses. This engine features a true 4 inch bore, which mathematically yields 377 CID with a 3.75 inch stroke,

Specifications

• Engine Displacement: 6.3 liters
• Horsepower: 438 horsepower
• Compression Ratio: 10.0:1
• Camshaft Type: Hydraulic Roller Tappet
• Cylinder Head Material: Aluminum
• Piston Material: Hypereutectic Aluminum
• Carburetor Included: Yes
• Intake Manifold Included: Yes
• Distributor Included: Yes
• Valve Covers Included: Yes
• Engine Balance: External
• Cylinder Heads Included: Yes
• Rear Main Seal Style: 1-piece
• Throttle Body Included: No
• Oil Pan Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: Yes
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: Yes
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• Computer Included: No
• Wiring Harness Included: No
• MFG. Part #: BP38318CTF1
• Notes: Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR
• Brand: BluePrint Engines

Emissions Notice

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
