JDM Toyota 3SGTE Engine For Sale – Used Gen-3 3SGTE

$2,520.00

Category: Tags: , , , , , , , , , , , , , , , , , , , , ,
Description

 JDM Toyota 3SGTE Engine For Sale



JDM Toyota 3SGTE Engine For Sale.The incredibly rigid and bullet-proof 3SGTE motor was Toyota’s very first 2-liter, 4 cylinders turbocharged performance engine used to power the Toyota Celica GT-4 and Toyota MR2 Turbo models between 1986 to 1999. This is a complete motor set, with approximately 45,739 miles covered. Ideal for your Toyota swap projects; Celica, MR2, Caldina amongst others.

TOYOTA CALDINA GT4 N-EDITION ST246W Gen-3 3SGTE ENGINE For Sale With ECU & TRANSMISSION
Latest generation 3SGTE engine for sale from JDM 4WD Caldina ST246W. Includes loom, ECU, Turbo, Intercooler, Manual Transmission, and some ancillaries. Perfect for transplant or conversion. Good swap to replace earlier generation 3SGTE from Celica GT4 ST205 etc.



Parts Included In The JDM Unit

  • Complete Engine (Head & Block)
  • Intake Manifold
  • Exhaust Manifold
  • Fuel Rails
  • Corresponding Alternator
  • Power Steering
  • Sensors
  • Wiring Harness
  • Oil Pan
  • Turbo
  • ECU

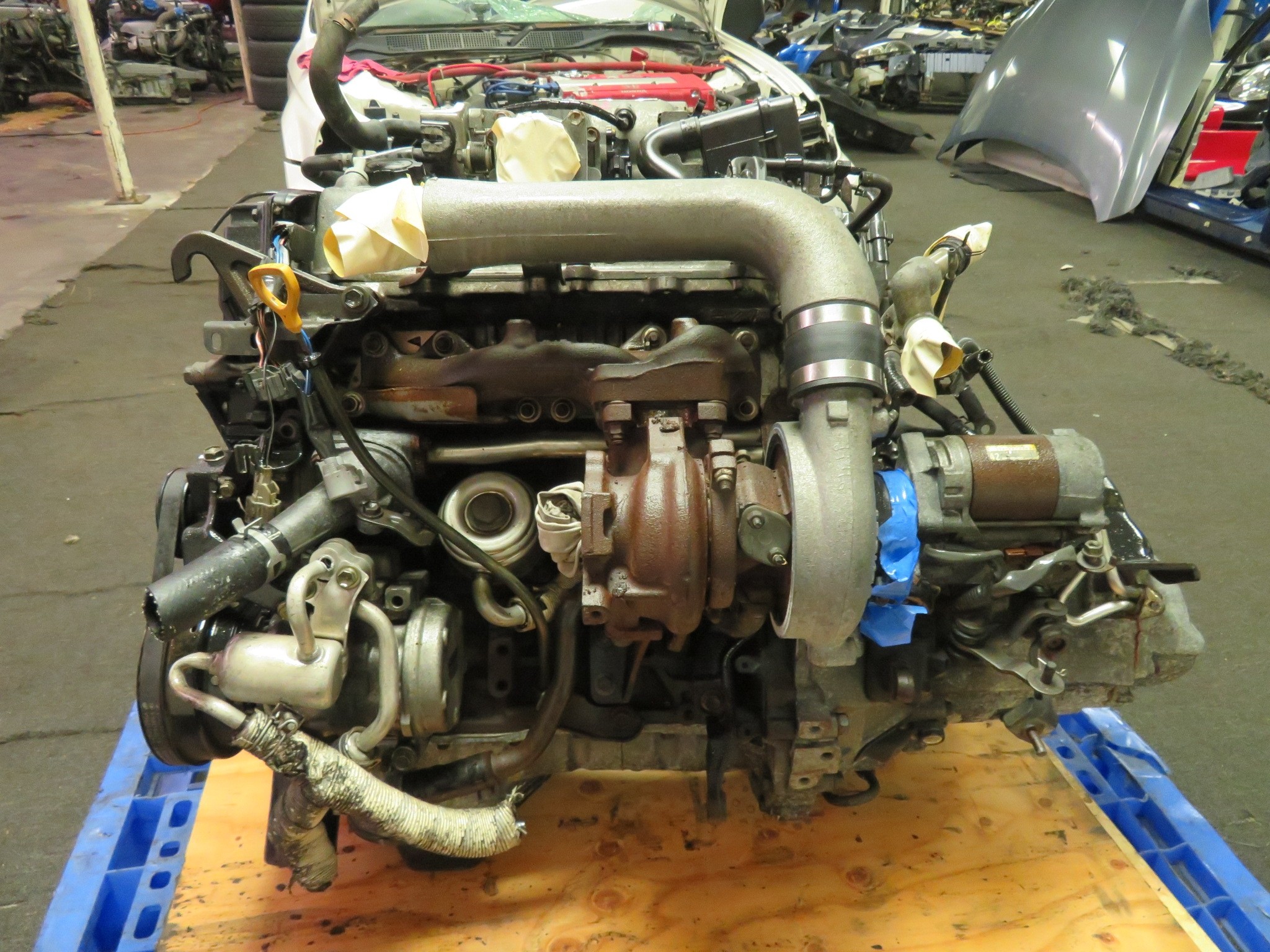

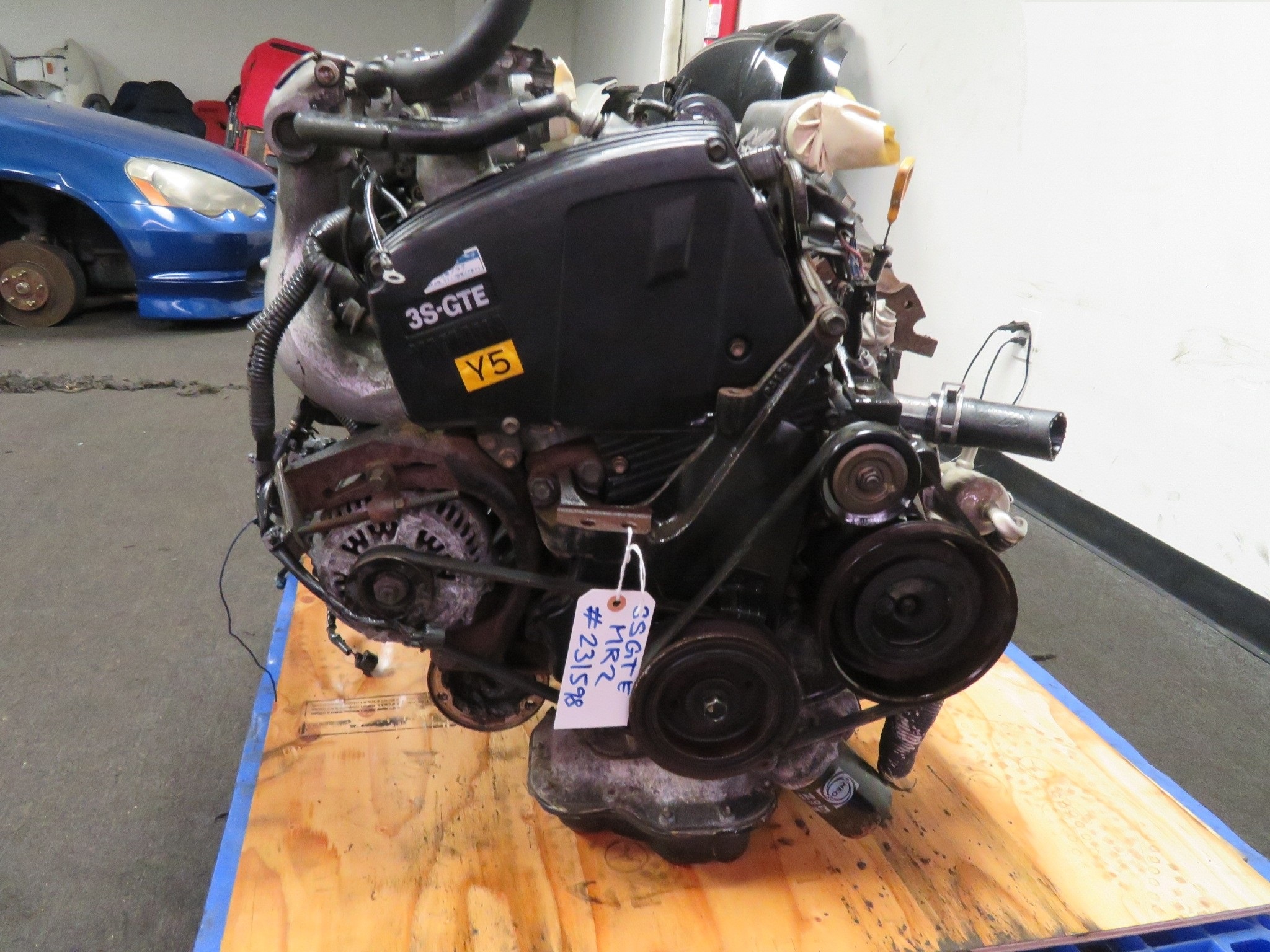

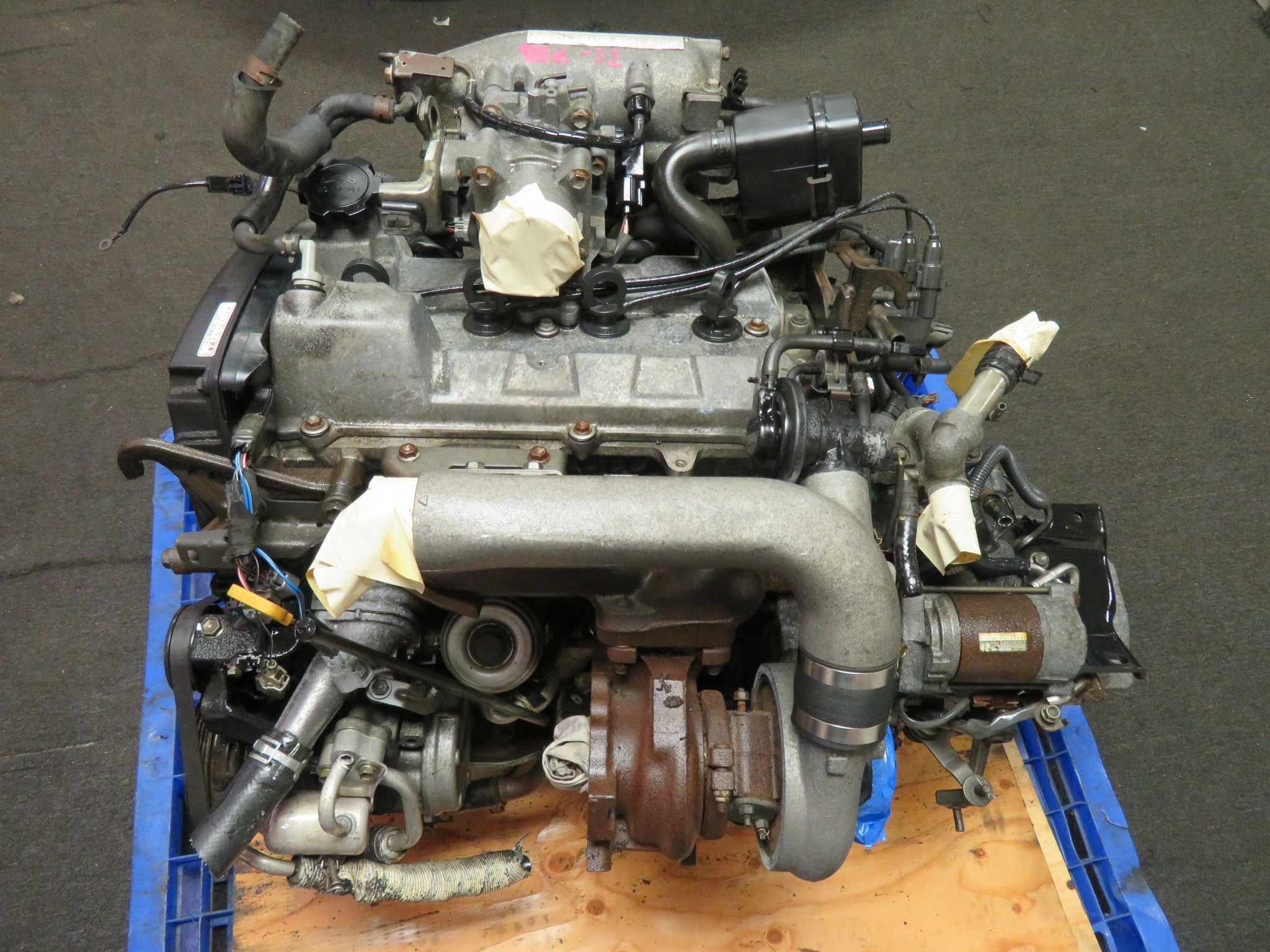

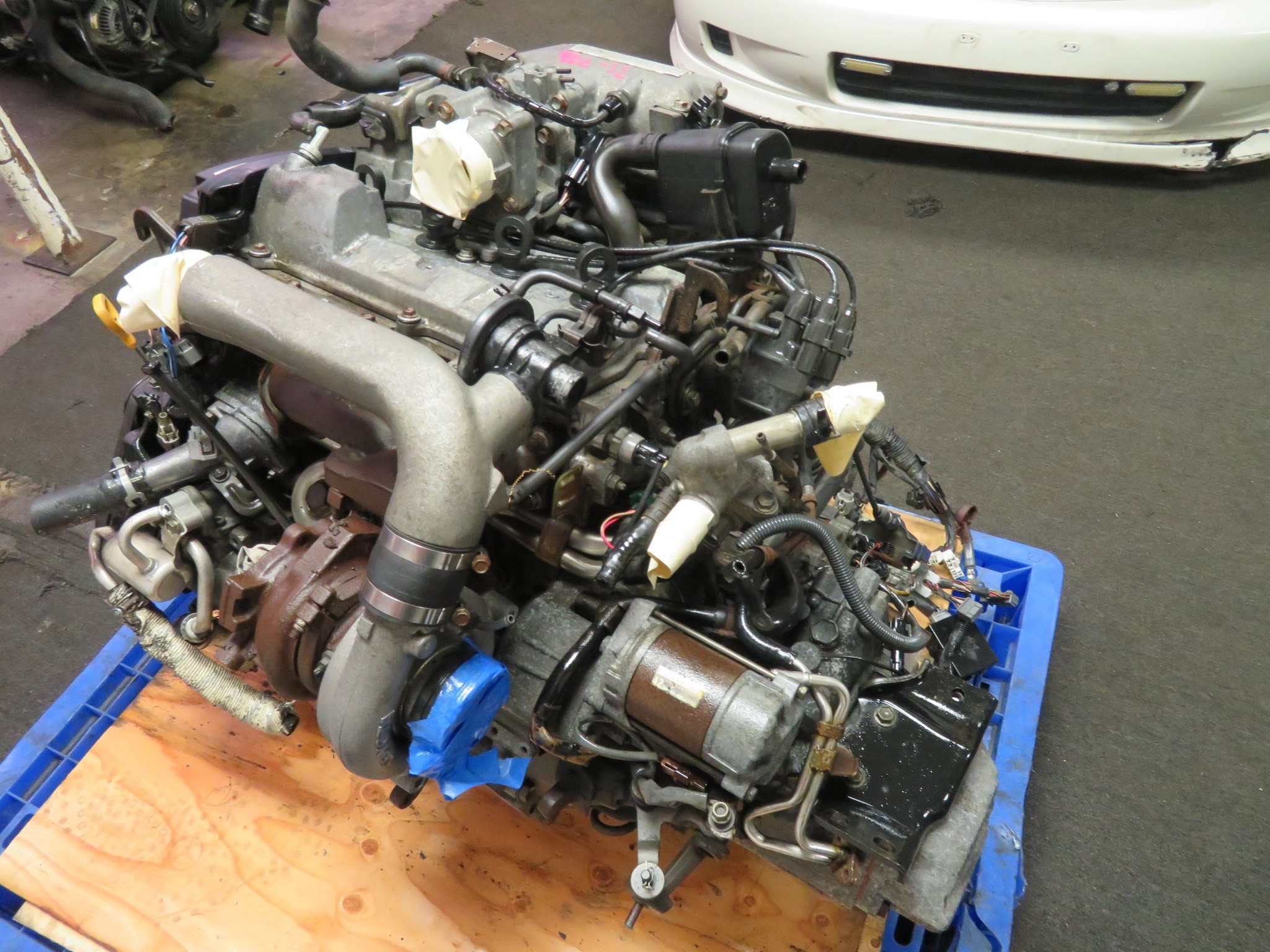

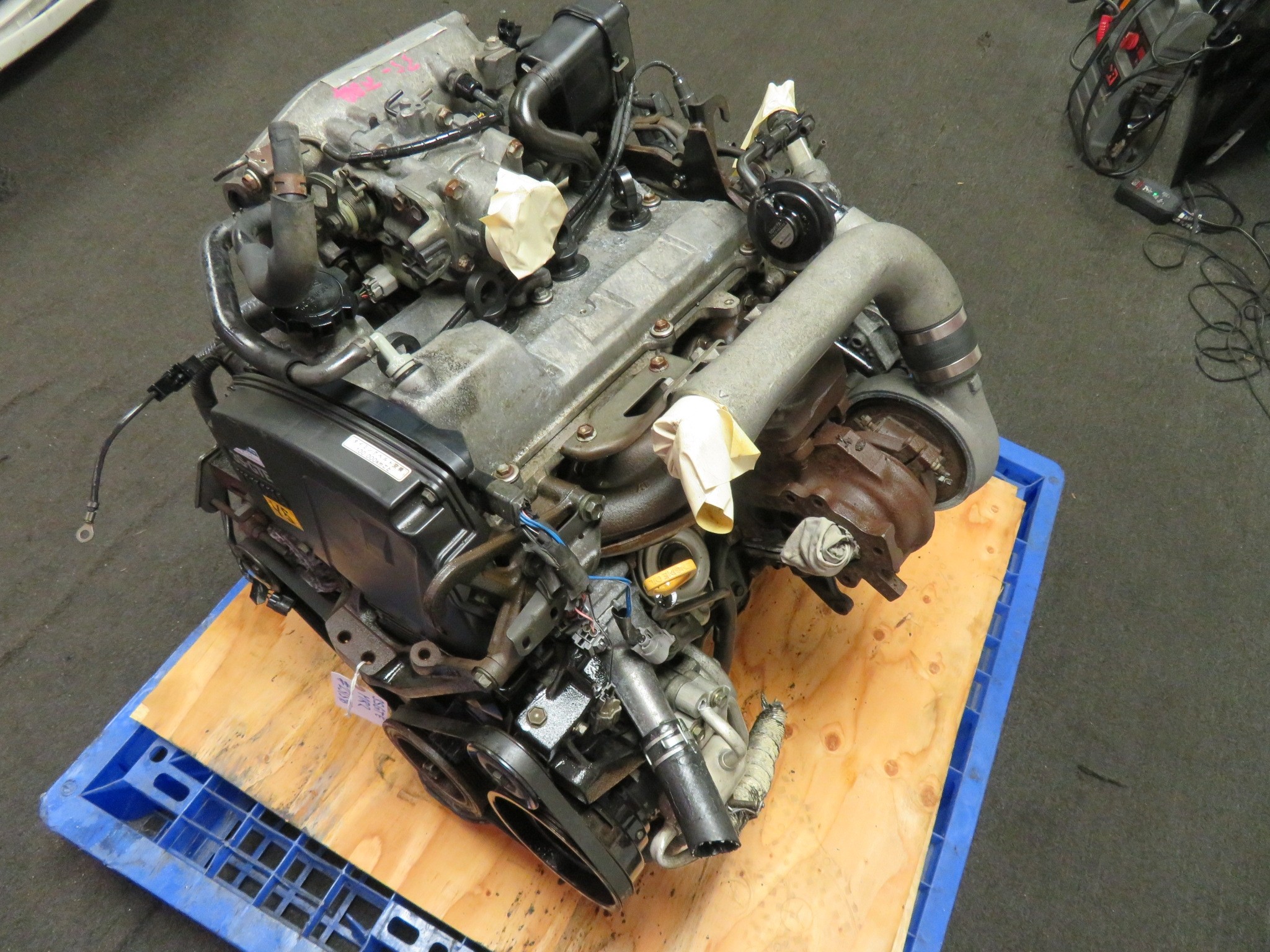

*What you see on the image is exactly what you get.



Toyota 3SGTE Reference Specs

Manufacturer  Kamigo Plant
Toyota Motor Manufacturing
Also called Toyota 3S
Initial Production 1987-2007
Cylinder block alloy Cast-iron
Configuration Straight-4
Valvetrain DOHC
4 valves per cylinder
Piston stroke, mm (inch) 86 (3.39)
Cylinder bore, mm (inch) 86 (3.39)
Compression ratio 8.5 (3S-GTE Gen. 1/Gen. 3)
8.8 (3S-GTE Gen. 2)
9 (3S-GTE Gen. 4)
9.2 (3S-GE Gen. 1)
9.8 (3S-FC, 3S-FE, 3S-FSE)
10 (3S-GE Gen. 2)
10.3 (3S-GE Gen. 3)
11.1 (3S-GE Gen. 4)
11.5 (3S-GE Gen. 5)
Displacement 1998 cc (121.9 cu in)
Power output 82 kW (111 HP) at 5,600 rpm
85 kW (115 HP) at 5,600 rpm
90 kW (122 HP) at 5,600 rpm
94 kW (128 HP) at 6,000 rpm
96 kW (130 HP) at 6,000 rpm
103 kW (140 HP) at 6,200 rpm
110 kW (150 HP) at 6,000 rpm
115 kW (156 HP) at 6,600 rpm
132 kW (179 HP) at 7,000 rpm
136 kW (185 HP) at 6,000 rpm
140 kW (190 HP) at 7,000 rpm
147 kW (200 HP) at 7,000 rpm
156 kW (212 HP) at 7,600 rpm
165 kW (225 HP) at 6,000 rpm
180 kW (245 HP) at 6,000 rpm
191 kW (260 HP) at 6,200 rpm
Torque output 166 Nm (122 lb·ft) at 3,200 rpm
162 Nm (132 lb·ft) at 4,400 rpm
169 Nm (125 lb·ft) at 4,400 rpm
178 Nm (131 lb·ft) at 4,400 rpm
178 Nm (131 lb·ft) at 4,400 rpm
175 Nm (129 lb·ft) at 4,800 rpm
192 Nm (142 lb·ft) at 4,000 rpm
186 Nm (137 lb·ft) at 4,800 rpm
192 Nm (142 lb·ft) at 4,800 rpm
250 Nm (184 lb·ft) at 3,600 rpm
210 Nm (155 lb·ft) at 6,000 rpm
210 Nm (155 lb·ft) at 6,000 rpm
220 Nm (162 lb·ft) at 6,400 rpm
304 Nm (224 lb·ft) at 3,200 rpm
304 Nm (224 lb·ft) at 4,000 rpm
324 Nm (239 lb·ft) at 4,400 rpm
Redline –
HP per liter 55.6
57.6
61.1
64.1
65.1
70.1
75.1
78.1
89.6
92.6
95.1
100.1
106.1
112.6
122.6
130.1
Fuel type Gasoline
Weight, kg (lbs) 143  (315) – 3SGE engine
Fuel consumption, L/100 km (mpg)
-City
-Highway
-Combined		 for Celica GT Turbo
13.0 (18.1)
8.0 (29.4)
9.5 (24.8)
Turbocharger  Naturally aspirated
Toyota CT26
Toyota CT20B
Oil consumption, L/1000 km
(qt. per miles)		 up to 1.0
(1 qt. per 750 miles)
Recommended engine oil 5W-30
5W-40
5W-50
10W-30
10W-40
10W-50
10W-60
15W-40
15W-50
20W-20
Engine oil capacity, L (qt.) 3.9 (4.1) — 3S-GTE 1 Gen.
3.9 (4.1) — 3S-FE/3S-GE 2 Gen
4.2 (4.4) — 3S-GTE 2 Gen.
4.5 (4.75) — 3S-GTE 3 Gen./4 Gen./5 Gen.
4.5 (4.75) — 3S-GE 3 Gen./4 Gen.
5.1 (5.4) – 3S-GE 5 Gen.
Oil change interval, km (miles) 5,000-10,000
(3,000-6,000)
Normal engine operating temperature, °C (F) ~95 (203)
Engine lifespan, km (miles)
-Official information
-Real		 –
300,000+ (185,000+)
Tuning, HP
-Max HP
-No life span loss		 350+
<300
The engine is installed in Toyota Avensis
Toyota Caldina
Toyota Camry
Toyota Carina
Toyota Carina E
Toyota Celica
Toyota Corona
Toyota RAV4
Toyota Vista
Lexus IS200 / Toyota Altezza
Toyota Ipsum
Toyota MR2
Toyota Nadia
Toyota Town Ace
Holden Apollo
